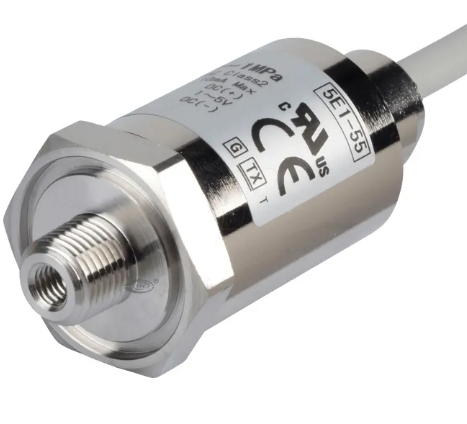

Cảm biến áp suất cho chất lỏng chung PSE56

99.000 ₫

SKU: PSE56
Chất lượng: Mới 100%
Bảo hành: 1 Năm
Chứng từ: hóa đơn VAT

HOẶC LIÊN HỆ TRỰC TIẾP

HOTLINE: 0977 241 159

ZaloZALO: 0977.241.159

Danh mục: CẢM BIẾN, SMC, SMC

Mô tả

■ Product Feature

1. PSE560 is for a standard pneumatic system’s pressure range, while the PSE564 model is for low pressure.

2. General purpose remote pressure sensor for liquid or gas at 1 MPa or less.

3. Includes a fixed cable with field wired connector option.

4. Oil-free (single diaphragm construction), Enclosure rating IP65.

smc vacuum sensor

■ Option/Part No.

Description	Part No.	Material	Note
Connector for pressure sensor controller	ZS-28-C	—	1pc.
Adapter with restrictor Rc1/4	ZS-31-X175	stainless steel 304	1pc.
Adapter with restrictor NPT1/4	ZS-31-X186		1pc.
Adapter with restrictor Rc1/8	ZS-31-X188		1pc.
Adapter with restrictor NPT1/8	ZS-31-X189		1pc.
Orifice M5	ZS-48-A	stainless steel 303	1pc.

Product Specification

■ Specification

Model	PSE560 (Positive pressure)	PSE561 (Vacuum pressure)	PSE563 (Compound pressure)	PSE564 (Positive pressure)
Rated pressure range	0 to 1MPa	0 to -101kPa	-100 to -100kPa	0 to 500kPa
Extension analog output range	-0.1 to 0MPa	10.1 to 0kPa	—	-50 to 0kPa
Proof pressure	1.5MPa	500kPa	500kPa	750kPa

Model		PSE56□-□	PSE56□-□-28
Working medium		Liquid or gas that will not corrode or attack stainless steel 316L
Power supply voltage		DC12 to 24 V±10%, Ripple (p-p) 10% or less (with reverse connection protection)
Current consumption		10mA or less	—
Output specifications		Analog output: 1 to 5V (within rated pressure range) 0.6 to 1V (within extension analog output range) Output impedance: Approx.1kΩ	Analog output: DC4 to 20 mA (within rated pressure range) Maximum load impedance: 500Ω or less (at DC24 V) 100Ω or less (at DC12 V)
Accuracy (Ambient temperature at 25℃)		±1%F.S. (within rated pressure range ), ±3%F.S. (within extension analog output range)
Linearity		±0.5% F.S.
Repeatability		±0.2% F.S.
Power supply voltage effect		±0.3% F.S.
Environment	Enclosure	IP65
	Operating temperature	Operating: 10 to 60℃, Stored: -20 to 70℃ (No freezing or condensation)
	Operating humidity	Operating/Stored: 35 to 85% RH (No condensation)
	Withstand voltage	AC250V for 1 minute between terminals and housing
	Insulation resistance	50MΩ or more (DC 50V measured via megohmmeter) between terminals and housing
Temperature characteristics		±2% F.S. (0 to 50°C: 25°C reference), ±3% F.S. (–10 to 60°C: 25°C reference)
Sensor cable		PSE56 – : Oilproof heavy-duty vinyl cable with air tubing, 3 cores, Φ5.1, 3 m, Conductor area: 0.2 mm², Insulator O.D.: 1.12 mm PSE56 – -28: Oilproof heavy-duty vinyl cable with air tubing, 2 cores, Φ5.1, 3 m, Conductor area: 0.2 mm², Insulator O.D.: 1.12 mm
Piping material		Case: C3604 + Nickel plating, Piping port/Pressure sensor: Stainless steel 316L, Grease-free
Standards		CE marking (EMC directive/RoHS directive), UL/CSA (E216656)

■ Option/Part No.

vacuum sensor

■ Analog Output

digital pressure sensor

Range	Rated pressure range	A	B	C
For vacuum pressure	0 to -101kPa	0kPa	-101kPa	10.1kPa
For compound pressure	-100 to 100kPa	-100kPa	100kPa	―
For positive pressure	0 to 1MPa	0kPa	1MPa	-0.1MPa
For positive pressure	0 to 500kPa	0kPa	500kPa	-50kPa
