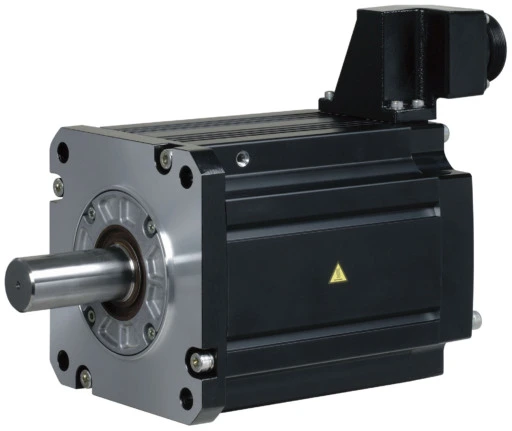

FA-Servo-Motion: Servo Motor
| Series | MELSERVO-J4 |
|---|---|
| Type | HG-JR |
| Power Supply (V) | 400 |
| Rated Capacity (kW) | 9 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 28,6 |
| Maximum Torque (Nm) | 85,8 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 5000 |
| Inertia (kg*cm2) | 65,4 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP67 |
| Current Type | AC |
| Encoder Type | 22-BIT |
| Encoder Resolution (p/rev) | 4194304 |
Product Dimensions & Weight
| Width (mm) | 176 |
|---|---|
| Height (mm) | 251,3 |
| Depth (mm) | 432 |
| Weight (kg) | 42 |
Life Cycle
| Material Set Up | 04.03.2013 |
|---|---|
| Sales Start | 02.06.2013 |
| Predecessor | 242233 |
| Vendor Material Status | ACTIVE |
| Serial No. on the Box | QR1 |
