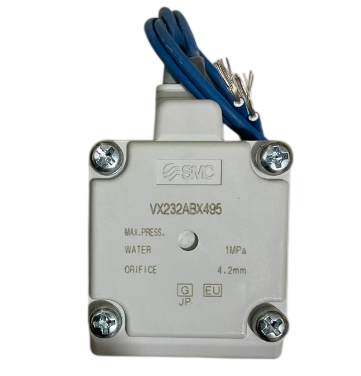

SMC VX232ABX495
SMC VX232ABX495 nc valve, VX2 2-WAY MEDIA VALVE
Series VX21/22/23, is a direct operated 2 port solenoid valve for air, gas, vacuum, water, steam and oil. Proper selection of body and sealing materials …
The VX2 for medium vacuum (0.1Pa.abs or more) is available with brass and stainless steel body. Three body sizes are available, with port size ranges from 1/8 to 1/2 inch. FKM seal, oil-free and non-leak construction is standard. EPDM seal is optional. Flow rate ranges from Cv of 0.23 to 2.21.
- IP65 enclosure
- Normally Closed and Normally Open type available, Class B coil
- Oil-free and non-leak construction specially designed for medium vacuum application
- Power consumption: size 1 – 4.5w; size 2 – 7w; size 3 – 10.5w
- Body material: C37 (brass), stainless steel
SMC Solenoid Valve.
[Features]
· IP65 protective enclosure
· UL94V-0 conforming flame resistance
· Low noise construction
· Piping variations
· Clearance
· Improved armature durability
Configured Specifications
| Type | Electromagnetic Type | Applicable Fluid | Water |
|---|---|---|---|
| Operating Environment | Dust Resistant | Switching Type | Normally Closed |
| Connection Type | [Rc (R)] Rc | Plumbing Thread Nominal | 1/4 |
| Driving Type | Linear Motion Type | Tube Dia. | – |
| Orifice Dia.(Ø) | 5 | Operating Temperature Range(°C) | -20～60 |
| Number of Solenoids | Single Solenoid | Operating Pressure Differential Range(MPa) | null～1 |
| Application | Single Item | IP | IP65 |
| Insulation Class | B | Voltage | 100 V AC |
| Sealing materials | FKM | Lead wire exit direction | IN side (standard) |
| Option | Compatible with low concentration ozone, deionized water, etc. | Body material | C37 |
